Genuine Square D HOM120 Circuit Breaker (2 Pack) Kit Bundle, 20 Amp (20A) Single Pole, 120V, 10kAIC, UL Listed, Plug-On for Homeline Load Centers & Panel Box, New Replacement

$26.99

  • GENUINE OEM BREAKER — This offer includes two (2) authentic HOM120 20-Amp single-pole circuit breakers from Square D's trusted Homeline series. The robust thermal-magnetic mechanism is engineered for reliable dual-action protection, responding to both sustained low-level overcurrents and instantaneous high-current short-circuit events. This component is a factory-new, unused Original Equipment Manufacturer (OEM) part, ensuring full compatibility for 120VAC branch circuits.
  • HOMELINE PANEL COMPATIBILITY — Designed with a plug-on mounting system for exclusive use in Square D Homeline load centers, CSEDs (Combined Service Entrance Devices), and breaker boxes. This standard 1-inch format breaker makes a secure and reliable connection to the panel's aluminum bus bar. It is not compatible with the different bus bar design of Square D QO-series panels, which ensures you are sourcing the specific component required.
  • 20A GENERAL-PURPOSE APPLICATION — The 20-Amp capacity is ideal for 120V branch circuits that use 12-gauge copper wiring (NM-B). Common applications include powering kitchen, laundry, and garage receptacle outlets, as well as dedicated circuits for larger appliances like microwaves or dishwashers that require 20A overcurrent protection. This is a direct replacement for existing 20A Homeline breakers.
  • TECHNICAL SPECIFICATIONS — This circuit breaker is Underwriters Laboratories (UL) Listed and American National Standards Institute (ANSI) Certified. It features a standard 10,000 Ampere Interrupting Capacity (10kAIC) for residential safety. The box lug terminal accepts a wire size range of #14 to #8 AWG for copper (Cu) and #12 to #8 AWG for aluminum (Al) conductors and has a recommended tightening torque of 35 lb-in.
  • INSTALLATION BUNDLE — This is a technical installation package from FalconSupply. The box contains two (2) genuine HOM120 breakers, one (1) individually sealed electronics cleaning wipe for bus bar preparation, and one (1) Pro-Finishing Hardware Pack containing two zinc-plated steel panel cover screws and one green grounding screw.
1 Item sold in last week
Compare
Add to wishlist
2 People watching this product now!
Categories: , , , ,
Description

Secure the precise electrical protection you need with this 2-Pack Offering of the Genuine Square D HOM120 20-Amp Single-Pole Miniature Circuit Breakers, bundled by FalconSupply with a professional installation set. This package is designed for standard 120V general-purpose residential branch circuits.

Technical Homeline Protection:

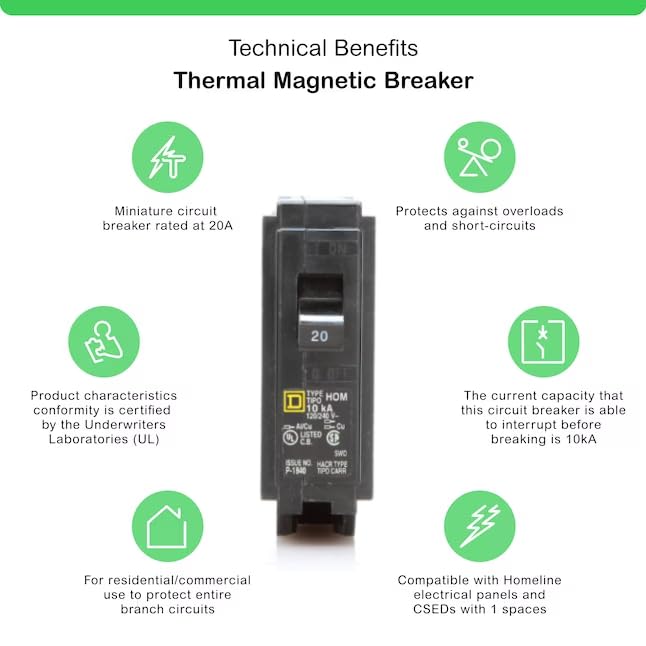

The foundation of this offer is the authentic HOM120 circuit breaker, a product of the Square D Homeline series. The thermal-magnetic breaker is engineered to provide dual-action protection against both overloads and short circuits, ensuring the safety of residential electrical infrastructure.

Designed for Dependability and General Use:
Engineered for 120V AC systems, this 1-pole 20 Amp breaker is built for performance in residential load centers. Its 10kA Interrupting Rating (10kAIC) indicates its capacity to safely handle fault current conditions. The plug-on design is made for the bus bars in Homeline series load centers, providing a secure connection for kitchen, utility, and general-purpose receptacle circuits.

Product Configuration Detail:Offering Detail: A 2-Pack installation bundle created by FalconSupply.

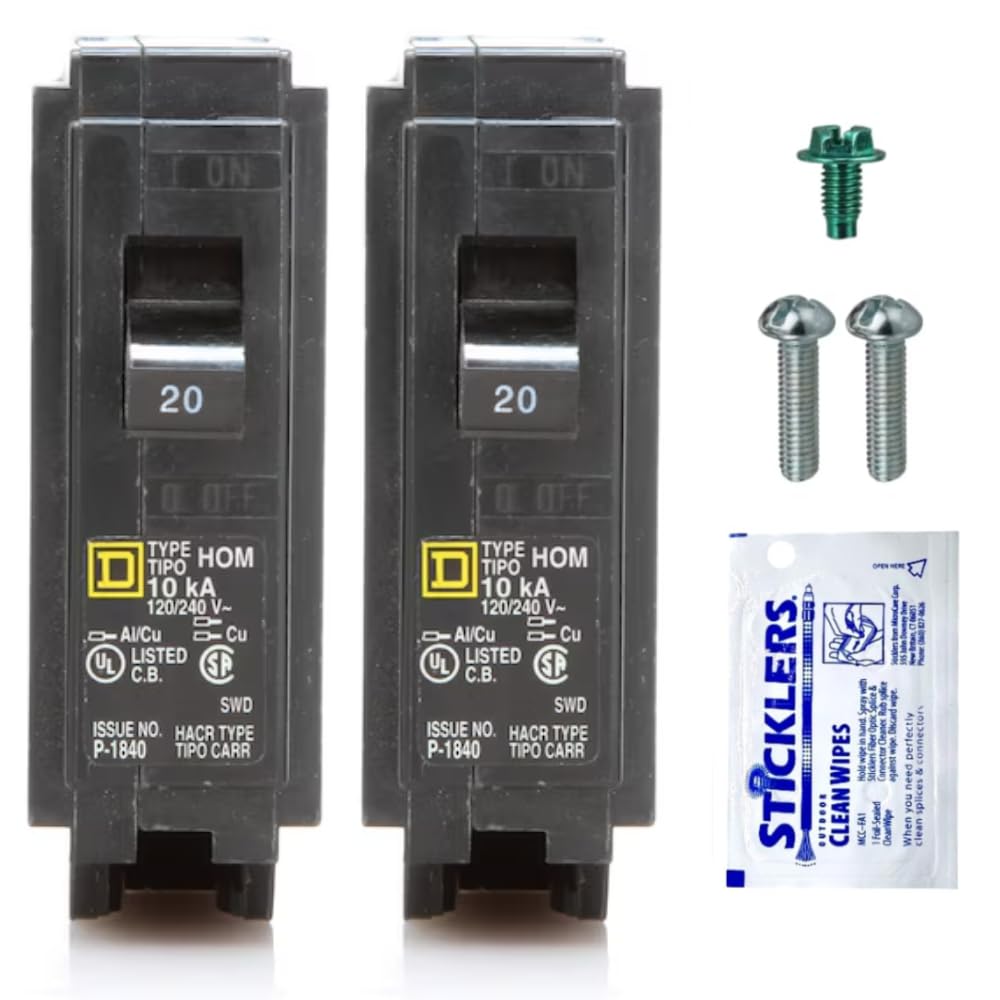

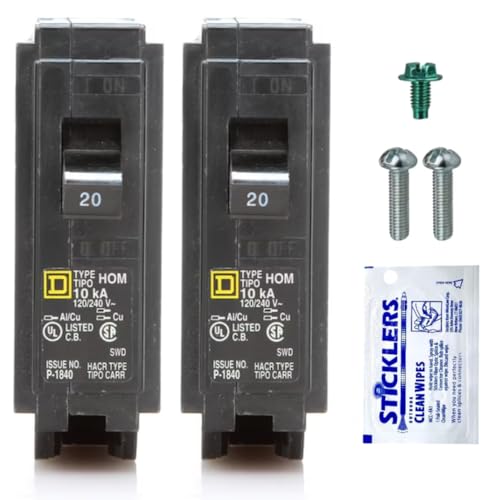

Package Contents: Two (2) HOM120 Breakers, One (1) Electronics Cleaning Wipe, Two (2) Panel Screws, One (1) Grounding Screw.
Product Condition: Brand New, Unused.

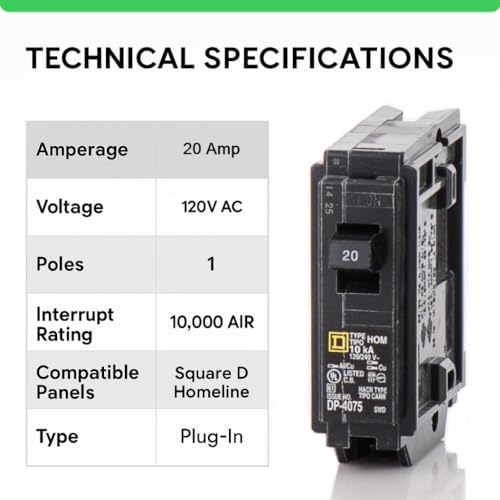

Core Component Specifications (HOM120):Manufacturer of Enclosed Component: Square D
Component Model Number: HOM120
Rated Amperage: 20 Amps
System Voltage: 120 Volts AC
Number of Poles: Single-Pole (1 Pole)
Short Circuit Interrupting Capacity: 10,000 Amps (10kAIC)
Mounting Style: Homeline Plug-On Type
Wire Size Compatibility: Accepts #14-8 AWG Copper or Aluminum conductors
Component Certifications: UL Listed, CSA Certified
