Product description
- Let Your Video Shooting Become Easier
FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers. Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, FEELWORLD aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.
- FEELWORLD Monitor is A Must-have Accessory for Your Shooting Setup.
When you’ve put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it’s a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.
- Flexible for Your Creative
As a filmmaker you need to pay special attention to the visual aspect in order to capture every moment of emotion. For that reason you can always trust FEELWORLD monitors technology, which allows you to bring your full capacity and creativity taking care of every detail in the most efficient way possible. FEELWORLD monitor helps you to capture those precious moments that you cannot afford to miss.
- Easy Multi-angle Monitoring
It’s not easy to evaluate your shot solely through your camera’s built-in monitor, especially if the entire unit is constantly rotating on a gimbal/ stabilizer, the camera on crane rig jib, One of the biggest issues when you are doing low-angle/ high angle shot is monitoring what you’re shooting. FEELWORLD monitor is ideal tool for you to monitor the scene since you can install it where you can conveniently see it.
- No Only Display, Make Sure Your Shot in Focus and Accurate Exposure
FEELWORLD monitor integrated directly help to make footage analysis/ adjustment especially on focus/ exposure while some cameras can`t transfer their features like Histogram to monitor. FW279S come with: Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Color Temperature Adjustment.
Accurately expose and focus every shot.
- Histogram
- Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Zebra Exposure
- Embedded Audio
- Nine Grid
- Scan Mode (Under Scan, Over Scan)
- Zoom (4x,9x,16x)
- Anamorphic Mode (1.3x,2.0x,2.0x mag), Pixel to Pixel
- Center Marke, Safe Area (80%,85%,90%,93%,96%,2.35:1)
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Marker Color (Red,Green,Blue,White,Black）
- Check Field (Red/Green/Blue/Mono)
- Image Flip (H, V, H/V), Image Freeze, Zoom All U/D & L/R Zoom
More detail about these features, you can see the video.
- Compatible Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
(Note battery not include, need purchase sperate)
Since the FW279S is the ultra bright, so it’s high Consumption: ≤18W. So choose a larger battery capacity can be used for a longer period of time, the Sony F970 can use about 2-3 hours.
- FAQ
1. Can’t turn on the monitor
Make sure to use the standard 12V 3A power adapter to connect the monitor. If power is supplied by F970 battery, please check if the F970 battery is fully charged.
2.Have noise during recording
Long press “<“ button and turn down volume to near zero, can aviod have not nosie during recording. Long press “>” is increase the volume.
3.The monitor display ” no signal”
1）Try another HDMI cable.
2）And please try to connect monitor HDMI to your computer, try if the monitor have signal?
3）Change the camera output singal, confirm the monitor input signal whether support the camera output signal.

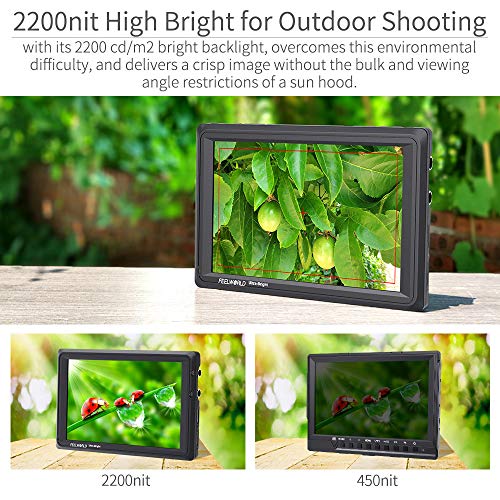

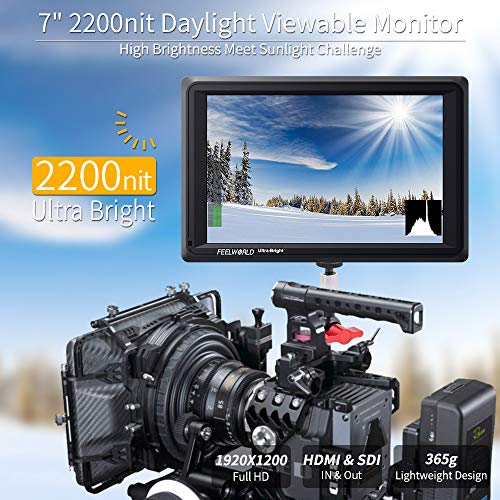

2200nit High Brightness Meet Sunlight Challenge
with its 2200 cd/m2 bright backlight, overcomes this environmental difficulty. When you monitor indoors you can adjust the backlight. FW279S can meet indoor and outdoor environmental monitoring. With 1920×1200 resolution, impressive 323 PPI, Rec.709 professional color calibration to provide a sharp image, ideal for focus pulling and image analysis on set and in the field. Includes 4K HDMI and 3G-SDI, you can connect any DSLR, prosumer or professional camera. The VESA 75 mounting holes set in the back to attach the monitor to a sturdier mount if needed.
More Detail about FW279S
Display Spec.
- Screen Size: 7″ IPS
- Resolution: 1920×1200 pixels
- Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
- Aspect Ratio: 16:10
- Brightness: 2200cd/m²
- Contrast Ratio: 1200:1
- Backlight: LED
- Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
- Input/ Output: 1X4K HDMI, 1XSDI
- Audio: Stereo Headphone, Speaker
- HDMI Input/ Output Format: 480i/576i/480p/576p1080i(60/59.94/50)720p (60/59.94/50/30/29/25/24/23.98)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
- SDI Format: 480i/576i720p(60/59.94/50/30/29/25/24/23.98)1080i(60/59.94/50)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
General
- Input Voltage: DC7～24V
- Power Consumption: ≤18W
- Power Connector: DC
- Working Temperature: -20°C~55°C
- Storage Temperature: -30°C~65°C
- Install Way: 1/4″-20 Thread Socket (bottom), 75mm VESA Mounting
- Size: 180Lx120Hx25D (mm)
- Weight: 365g/395g (With F970 Battery Plate)
- Note: Power Adapter need use 3A
Package Include
- 1 x FW279S Monitor
- 1× HDMI to Mini HDMI Cable
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
- 1× Operation Manual
